DMG10600T070_01W (7-Inch, 1024×600 Resolution)
Available Variant Display Hardware Electrical Specifications Operating Environment Development and Support Varient Resistive Touch: DMG10600T070_01WTR Touch Life: >1,000,000 times Varient Capacitive Touch DMG10600T070_01WTC Touch Life: >10,000,000 times Varient Without Touch: DMG10600T070_01WN LCD Size: 7.0 inches LCD Type: IPS, TFT LCD Resolution: 1024×600 pixels（0°/90°/180°/270°） Brightness: 200-250-300nit Display Grade: Industrial Grade Colors: 16.7M colors (24-bit 8R8G8B) Viewing Angle: Wide viewing angle,85°/85°/85°/85°(L/R/U/D) Active…
-
DMG48270C043_15W (4.3-Inch, 480×272 Resolution)
Available Variant Display Hardware Electrical Specifications Operating Environment Development and Support Varient Resistive Touch: DMG48270C043_15WTR Touch Life: >1,000,000 times LCD Size: 4.3-inch LCD Type: TV-TN, TFT LCD Resolution: 480×272 pixels (support 0°/90°/180°/270°) Brightness: 250nit Display Grade: Commercial grade Colors: 262K colors (18-bit 6R6G6B) Viewing Angle: TV viewing angle, 70°/70°/40°/30°（L/R/U/D） Active Area (A.A.): 95.00mm (W)×53.90mm (H) Form Factor: 139.8mm (W)×97.8mm (H)…
-

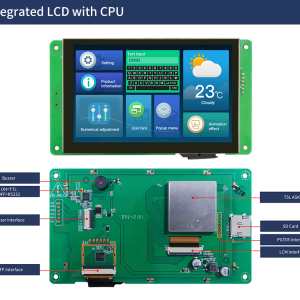

DMG80480C050_04W (5-Inch, 800×480 Resolution, COB UART Display)
Display Hardware Electrical Specifications Operating Environment Development and Support Available Variant Size: 5.0 inches Type: IPS, TFT LCD Resolution: 800×480 pixels (0°/90°/180°/270°) Brightness: 280nit – 300 nits Colors: 262K (18-bit 6R6G6B) Backlight LED Lifetime: >20000 hours Enclosure : No Serial Interface: UART2: ON=TTL/CMOS; OFF=RS232; UART4: ON=TTL/CMOS; OFF=RS232 Recommended Power Supply: 5V 1A DC Operating Temperature: -20℃~70℃ (5V @ 60%…
-
DMG80480C070_15W (7-Inch, 800×480 Resolution)
Available Variant Display Hardware Electrical Specifications Operating Environment Development and Support Varient Resistive Touch: DMG80480C070_15WTR Touch Life: >1,000,000 times LCD Size: 7.0 inches LCD Type: TV-TN, TFT LCD Resolution: 800×480 pixels (support 0°/90°/180°/270°) Brightness: 200nit Display Grade: Commercial grade Colors: 262K (18-bit 6R6G6B) Viewing Angle: TV viewing angle, 70°/70°/40°/30° (L/R/U/D) Active Area (A.A.): 154.1mm (W)×85.9mm (H) Form Factor: 194.8mm (W)×135.0mm…
-
DMG80480F070_02W ( 7.0-Inch, 800*480 Resolution, UART Display)
Display Hardware Electrical Specifications Operating Environment Development and Support Available Variant Size: 7 inches Type: TN TFT display Resolution: 800*480 pixels resolution Brightness: 200nit Colors: 262K colors Backlight LED Lifetime: Over 10000 hours Enclosure : No Serial Interface: UART2: TTL; UART4: TTL;（OS Only available after OS configuration UART5: TTL;（OS Only available after OS configuration） Recommended Power Supply: 5V 1A DC…
-
DMG80480T050_A5W (5-Inch, 800×480 Resolution)
Available Variant Display Hardware Electrical Specifications Operating Environment Development and Support Varient Resistive Touch: DMG80480T050_A5WTR Touch Life: >1,000,000 times Varient Capacitive Touch DMG80480T050_A5WTC Touch Life: >10,000,000 times LCD Size: 5.0 inches LCD Type: IPS-TFT-LCD Resolution: 800×480 pixels Brightness: 250 – 300 nit Display Grade: Industrial Grade Colors: 16.7M (24-bit 8R8G8B) Viewing Angle: 85°/85°/85°/85° (L/R/U/D) Active Area (A.A.): 108.8mm (W) ×65.6mm…
